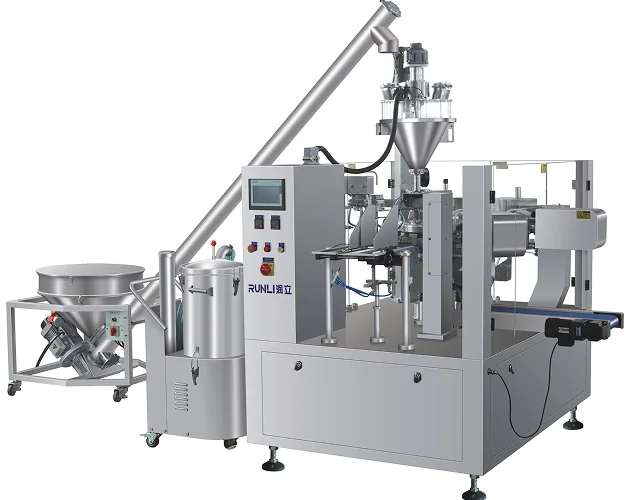

Powder Pre-made Pouch Packing Machine
This rotary pre-made pouch packaging machine is designed for powdered products such as flour, milk powder, coffee powder, and protein powder. The high-speed pouch filling sealing machine comes with screw-based dosing combined with a secondary weight compensation system, supporting precise and consistent powder filling. The high-speed pouch filling sealing machine allows for a packaging speed of 35–70 pouches per minute and can be used for various kinds of pre-made pouches, including flat pouches, zipper pouches, stand-up pouches, spout pouches, aluminum foil pouches, shaped pouches, and PE-lined kraft paper pouches, helping improve overall production efficiency and packaging reliability.
Features
- This premade pouch packaging machine comes with intelligent one-touch gripper adjustment and an 8-station fully automated operation, enabling a faster and more efficient workflow.
- All food-contact components are constructed from 304 or 316 stainless steel. Optional modules such as nitrogen flushing, dust extraction, hole punching, and zipper pouch opening can all be integrated into the packaging system.
Configurations
Automatic Lubrication System
Integrated Gripper Adjustment System
Glass Safety Door
Siemens Touchscreen

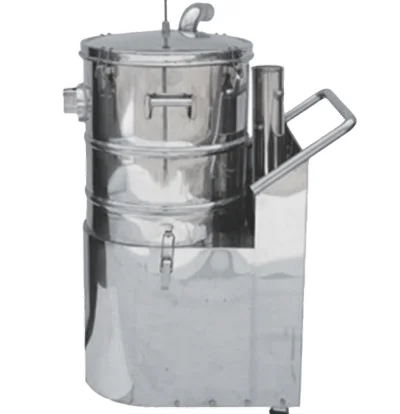

Dust Extraction Unit
Secondary Weight Check
Ribbon Coding Machine
Empty Pouch & Pouch Presence Detection
Outfeed Conveyor

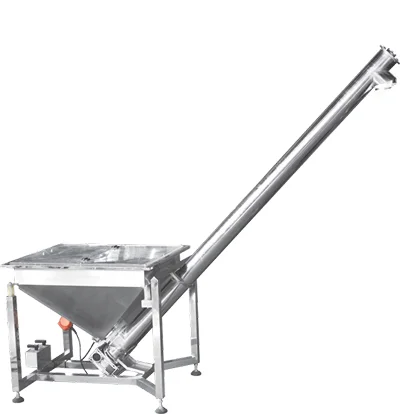

Screw Feeder

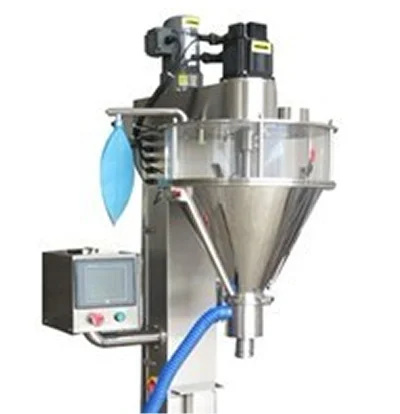

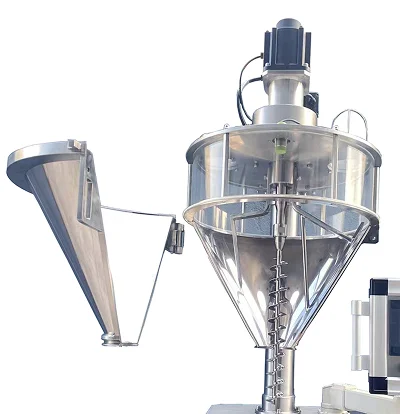

Auger Dosing
Auger
Multihead Weigher
Linear Scale
Technical Parameters
| Model | |||||
|---|---|---|---|---|---|
| Pouch Materials | OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP | ||||
| Pouch Size | Pouch width: 80-230mm, Pouch length: Less than 380mm | Pouch width: 120-250mm, Pouch length: Less than 380mm | Pouch width: 180-320mm, Pouch length: Less than 450mm | Pouch width: 200-350mm, Pouch length: Less than 450mm | Pouch width: 250-400mm, Pouch length: Less than 550mm |
| Packaging Speed | 10-60 pouches/minute (depending on product properties) | ||||
Workflow
Bag Feeding
Coding
Bag Opening
First Filling
Second Filling (Reserved)
Pouch Mouth Cleaning (Optional)
Heat Sealing
Cooling & Outfeeding
