- Models
- RL-250, RL-250A, RL-350, RL-350A
- Process
- Horizontal roll-film forming, sealing and cutting
Horizontal Form Fill and Seal Packaging Machine
Automatic horizontal form fill and seal machines use roll film to make bags in a continuous packaging process. Products are conveyed horizontally into the packaging area while the machine forms the film, creates longitudinal seals, performs transverse sealing and cutting, and discharges the finished packs. The result is a consistently formed pillow package with reliable seals.
Unlike vertical packaging machines that primarily use gravity for product filling, horizontal packaging machines are well suited to products with a defined shape, items that must maintain their orientation, or products requiring gentle handling. Common applications include biscuits, bread, convenience foods, pharmaceuticals, daily-use products and industrial components.

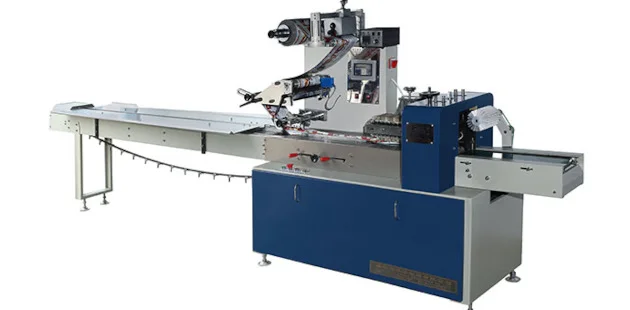

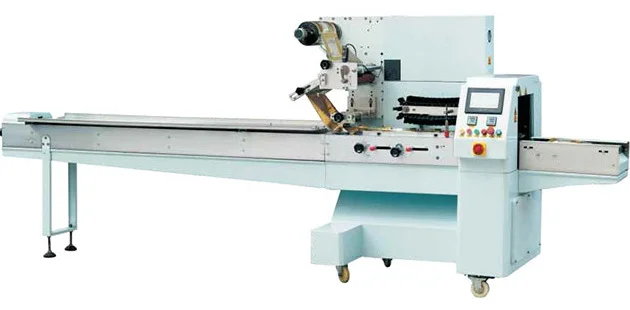

HFFS Packaging Machines
- Models
- RL-450H, RL-600H
- Process
- Horizontal roll-film forming, sealing and cutting
How HFFS Packaging Works
An HFFS machine feeds products horizontally into packaging film, which is formed around each product through a forming collar. The film edges are joined by a longitudinal seal, while cross-sealing jaws seal and cut the film to create individual pillow packs. A synchronized conveyor system ensures accurate product positioning and consistent bag lengths. The entire process runs automatically, with adjustable settings for different product sizes, packaging materials and production speeds.
