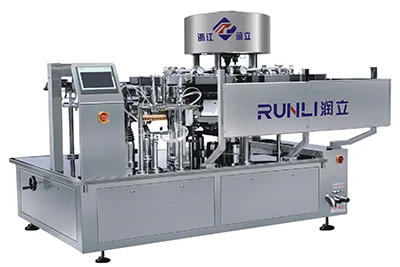

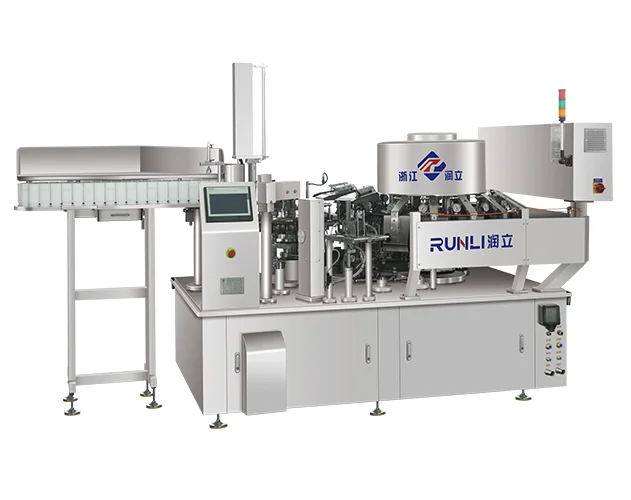

View ModelsRotary Vacuum Packaging MachineRL-GD10-ZK12-1627
The RL-GD10-ZK12-1627 automates vacuum packaging for premade pouches 80–160 mm wide and 80–270 mm long. It is suitable for bean products, meat, eggs, pickled vegetables and other foods requiring reliable vacuum sealing.
Combining a 10-station pouch feeding and filling system with a 12-chamber rotary vacuum system, it completes pouch feeding, opening, filling, mouth cleaning, vacuuming, sealing and discharge at 30–80 pouches per minute. Configurable weighing and filling systems support different products and single or secondary filling processes.
- Working Stations
- 10 Stations · 12 Vacuum Chambers
- Pouch Width
- 80–160 mm
Features
- Automatic Pouch Width Adjustment
- Mechanical Transmission System
- Empty Pouch Cycling System
- Automatic Spray Lubrication System
- Water-Resistant Machine Body for Easy Cleaning
- 10-Station Feeding and Filling System
- 12-Chamber Rotary Vacuum System
- Machined Aviation-Grade Aluminum Vacuum Chambers
- Flexible Changeover of Feeding Systems
Supported Pouch Types
Stand-up Pouch with Zipper
Zipper Stand-up Pouch with Hang Hole
Flat Pouch with Zipper
Flat Pouch with Zipper & Hang Hole
Side Spout Pouch
Technical Parameters
| Working Stations | 10 Stations · 12 Vacuum Chambers |
|---|---|
| Machine Material | 304 Stainless Steel |
| Pouch Types | Flat Pouches, Quad Seal Pouches, Aluminum Foil Bags, Retort Pouches, Composite Paper Bags |
| Pouch Size | Width: 80–160 mm; Length: 80–270 mm |
| Design Speed | 80 pouches/min |
| Packaging Speed | 30–80 pouches/min (depending on product properties) |
| Sealing Method | Instant heat sealing with water cooling to ensure smooth and firm sealing |
| Total Power | Main Machine: 4.5 kW; Vacuum Pump: 5–7.9 kW |
| Machine Weight | 2800 kg |
| Overall Dimensions | 2450 × 1720 × 1680 mm |
| Compressed Air Consumption | ≥0.8 m³/min |
Actual packaging speed depends on pouch type, product characteristics, filling weight and machine configuration.
Workflow of Bag Feeding & Filling System
- Bag Feeding
- Coding (Optional)
- Bag Opening
- 1st Filling
- 2nd Filling (Reserved)
- Pouch Mouth Cleaning
- Empty Station
- Pouch Transfer
- Empty Station
Workflow of Vacuum System
- Pouch Loading
- Lid Closing
- Vacuum Evacuation
- Continuous Vacuuming
- Sealing & Cooling
- Pressure Recovery
- Outfeeding
- Reset
